Thermal ALD vs Plasma ALD: How Does the Process Differ?

Thermal ALD and plasma-enhanced ALD both build thin films through sequential, self-limiting surface reactions. The main difference is how each process supplies the energy needed for those reactions. Thermal ALD relies on chemical reactions driven by the process chemistry and substrate temperature, while plasma ALD uses plasma-generated reactive species during at least one part of the deposition cycle.

That distinction affects process temperature, substrate compatibility, film chemistry, conformality, and the risk of altering sensitive surfaces. Neither method is universally better. Choosing between thermal ALD vs plasma ALD depends on the material being deposited, the component itself, its geometry, and what the finished coating needs to do.

At VaporPulse Technologies, we develop custom Atomic Layer Deposition processes around those application-specific requirements rather than treating every component like a flat wafer.

What Is Thermal ALD?

Thermal Atomic Layer Deposition uses alternating vapor-phase reactants to form a thin film through surface-controlled chemical reactions.

A typical cycle starts by introducing the first precursor into the reaction chamber. That precursor reacts with available surface sites until the reaction reaches saturation. The chamber then purges excess precursor and reaction byproducts.

Next, a second reactant enters the chamber and reacts with the surface left by the first half-cycle. Another purge completes the cycle.

Repeating this sequence gradually builds the film.

Because each surface reaction becomes self-limiting under appropriate conditions, ALD gives engineers precise control over film growth. Film thickness primarily depends on the number of completed cycles once the process reaches stable growth.

Thermal ALD does not mean that every process requires an extremely hot substrate. Actual deposition temperature depends heavily on the precursor chemistry and material system. Stanford University’s Nanofabrication Facility describes thermal ALD systems that are also used for low-temperature deposition.

The relevant question is whether a thermal chemistry produces the required film within the temperature range the component can tolerate.

What Is Plasma-Enhanced ALD?

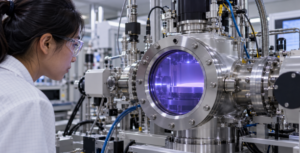

Plasma-enhanced Atomic Layer Deposition, commonly called plasma ALD or PEALD, adds a plasma-generated reactant to the ALD cycle.

Instead of relying entirely on thermal chemical reactions, the process generates highly reactive species such as radicals, ions, and excited molecules from a gas. Those species participate in one of the ALD half-reactions.

The remaining cycle still follows the familiar ALD sequence of reactant exposure, purge, second reactant exposure, and purge.

Plasma activation changes what chemistries become practical. It can allow some reactions to proceed at lower substrate temperatures and can improve ligand removal or enable film compositions that are difficult to achieve through a purely thermal route.

That makes PEALD valuable for specific films and applications, particularly when thermal reaction kinetics create a limitation.

Thermal ALD vs Plasma ALD: What Actually Changes?

The biggest difference between thermal ALD vs plasma ALD is the source of reactive energy.

Thermal processes depend primarily on precursor chemistry and temperature to drive surface reactions. Plasma-enhanced processes create more energetic reactive species that can react with the surface even when the substrate itself remains at a lower temperature.

That difference affects several engineering considerations.

Process Temperature

Plasma ALD can sometimes reduce the substrate temperature required for a particular coating chemistry. This matters for substrates that cannot tolerate the thermal conditions associated with an equivalent thermal process.

However, plasma ALD should not automatically be described as the low-temperature option.

Some thermal ALD chemistries already operate at relatively modest temperatures. Likewise, reducing substrate temperature too far can affect reaction completeness, film density, impurities, nucleation, or other film properties.

The complete process window matters more than the label attached to the process.

Film Chemistry and Material Options

Plasma-generated species are highly reactive. That additional reactivity can expand the available process chemistry and enable films that are difficult to deposit using conventional thermal reactions.

For example, plasma processes are frequently considered for certain nitrides, metals, and other materials where a purely thermal reaction does not proceed efficiently under acceptable conditions.

PEALD can also improve removal of precursor ligands in some systems, which can affect film purity and density.

Those advantages remain chemistry-specific. A plasma process does not automatically produce a better film than a thermal process.

Surface Exposure

A thermal ALD process avoids deliberate plasma exposure during film growth.

That difference becomes particularly important with polymers, organic materials, sensitive electronic structures, thin functional layers, and other surfaces that could change after exposure to energetic plasma species.

Plasma can modify surface chemistry, create reactive sites, alter bonding, or cause other changes depending on power, pressure, gas chemistry, reactor configuration, and exposure time.

Those effects may be useful when surface activation is intentional. They become a problem when preserving the original substrate surface is part of the specification.

VaporPulse specifically works with plasma-free ALD options for polymers and other delicate substrates where unnecessary plasma exposure presents a compatibility concern. VaporPulse Technologies, Inc.

Does Plasma ALD Always Have Better Film Quality?

No. Film quality depends on what property matters and how well the process has been developed.

PEALD can produce dense films with low impurity levels in some material systems because reactive plasma species promote complete surface reactions. In other cases, plasma exposure can introduce defects or alter an underlying interface.

Thermal ALD may preserve a sensitive surface more effectively and provide excellent film quality when compatible chemistry exists.

Engineers should define film quality in measurable terms rather than assuming one process creates a superior coating.

Depending on the application, relevant properties could include electrical leakage, dielectric strength, composition, density, adhesion, optical behavior, corrosion resistance, moisture barrier performance, surface roughness, or stability after thermal cycling.

The deposition route should support those requirements.

How Does Part Geometry Affect the Choice?

Geometry can have a major influence on thermal ALD vs plasma ALD selection.

One of ALD’s strongest advantages is its ability to coat surfaces that line-of-sight methods struggle to reach. Vapor-phase precursors can move through recessed features, curved surfaces, pores, tubes, and other complex geometries when the process provides adequate exposure and purge conditions.

Thermal ALD often performs particularly well in high-aspect-ratio structures because precursor molecules can diffuse deep into a feature before completing their self-limiting surface reaction.

PEALD introduces another transport consideration. Plasma-generated radicals can recombine as they travel along surfaces. In sufficiently deep or complicated structures, fewer reactive species may reach the deepest areas.

That does not mean plasma ALD cannot produce conformal coatings. PEALD conformality varies with chemistry, plasma configuration, feature geometry, exposure conditions, and reactor design.

It does mean that an excellent process on a flat test coupon cannot automatically be assumed to perform identically inside a long bore or deep recessed feature.

VaporPulse encounters this issue directly in applications involving internal features, stainless steel tubes, and small bores. Geometry needs to become part of the process-development discussion early, rather than after a coating recipe has already been selected. VaporPulse Technologies, Inc.

Is Plasma ALD Better for Temperature-Sensitive Parts?

Sometimes, but substrate temperature tells only part of the story.

PEALD may enable a useful coating chemistry at a lower temperature than its thermal alternative. That advantage can matter for components with strict thermal limits.

At the same time, a temperature-sensitive component may also be plasma-sensitive.

Polymers are a good example. A polymer, adhesive, organic coating, or embedded material could tolerate the reactor temperature but still undergo unwanted surface modification during plasma exposure.

Conversely, a plasma-free thermal chemistry could operate within the component’s allowable temperature range and avoid that additional surface exposure entirely.

That is why we evaluate the complete part rather than looking at a single material data sheet. Our work with temperature-sensitive polymers and low-temperature ALD considers thermal limits alongside surface chemistry, precursor interaction, outgassing, geometry, and the construction of the finished component. VaporPulse Technologies, Inc.

When Does Thermal ALD Make More Sense?

Thermal ALD deserves consideration when a compatible chemistry exists and preserving the substrate surface matters.

It can also be a strong option for high-aspect-ratio structures or internal geometries where reactant penetration is critical.

A thermal route may make sense when:

• The substrate or functional surface should avoid plasma exposure
• A suitable thermal chemistry exists within the allowable temperature range
• The component contains deep internal features that require strong conformality
• Plasma-generated surface modification would interfere with device performance
• The required film properties can be achieved through thermal chemistry

These are starting points rather than universal rules. Process development still has to account for the actual precursor system and component.

When Does Plasma ALD Make More Sense?

PEALD becomes attractive when plasma activation solves a specific limitation.

The process may allow a film to grow at a lower substrate temperature, improve reaction completeness, reduce certain impurities, or make a desired material chemistry practical.

Engineers may evaluate plasma ALD when:

• The target film chemistry reacts poorly through a thermal route
• Lower processing temperature is necessary
• Plasma activation supports the required film composition or properties
• The substrate tolerates the relevant plasma conditions
• The component geometry allows sufficient transport of reactive plasma species

Testing remains important because plasma power, gas chemistry, exposure time, reactor configuration, and substrate position can all affect the result.

How Should You Choose Between Thermal and Plasma ALD?

Start with the component specification rather than choosing the process first.

The coating provider should know what material needs coating, the maximum allowable process temperature, the geometry, the areas that require coverage, and the environment the component will encounter.

For protective coatings, describe the actual threat. A component exposed to humidity presents a different materials problem from one exposed to corrosive chemicals, repeated thermal cycling, vacuum, or an operating plasma.

Film requirements also matter. Specify electrical, optical, chemical, dimensional, or barrier properties where possible.

This information lets the process developer evaluate whether thermal ALD, PEALD, or another deposition approach fits the application.

At VaporPulse Technologies, we work with complex geometries, non-standard and delicate substrates, custom process development, rapid prototyping, and pilot-scale projects. If you’re deciding between thermal and plasma ALD, contact our team with the component material, drawing, operating environment, and coating requirements. Those details give us a practical starting point for determining which process route deserves testing. VaporPulse Technologies, Inc.

The Practical Difference Between Thermal ALD and Plasma ALD

Thermal ALD relies on thermally driven surface chemistry, while plasma ALD introduces plasma-generated reactive species into part of the deposition cycle. That single process change can affect deposition temperature, available materials, film properties, substrate interaction, and coating penetration into complex features.

PEALD can expand the available chemistry and enable lower-temperature reactions in some systems. Thermal ALD avoids deliberate plasma exposure and can be advantageous for sensitive surfaces or demanding internal geometries.

The correct choice comes from matching the process to the complete component and the required film performance. Temperature, geometry, chemistry, plasma sensitivity, and the final operating environment should all enter that decision before a coating recipe is selected.
